Toggler SNAPTOGGLE® Heavy-Duty Toggle Bolts 304 Stainless Steel Channels

SNAPTOGGLE heavy-duty toggle bolts carry twice the load in a smaller hole than standard wing anchors. A patented strap design with sturdier straps and smaller ratchet interval adjusts more precisely and snaps off flush to the surface.

SNAPTOGGLE heavy-duty toggle bolts do NOT spin when installed with a screw gun and provide superior holding with metal-to-metal fastening.

Materials / Finishes

• Channel: Yellow zinc-plated cold rolled steel or 304 stainless steel
  • Metal Channel is RoHS-Compliant

• Straps and handle: High impact polystyrene
• Cap: Translucent polypropylene co-polymer

Features and Benefits

• Strong – up to 2x the load of an old-fashioned wing toggle
• Solid metal channel resists vibration and shock
  • bolt is centered in channel and positioned for precise installation
  • bolt threads never touch interior surface of hole and so can’t saw through substrate
• Save time – at least 6 minutes per anchor versus wing toggles
• Can use a screw gun – anchor does not spin
• Save money – turn a 2-person job into a 1-person job
• Use a shorter bolt – no need to carry a wing through the wall
• Patented strap design with sturdier straps and smaller
  ratchet interval:
  • adjusts more precisely and snaps off flush to wall,
    ceiling, or floor
  • does not break prematurely
  • pushes aside insulation
• Smallest installation hole for each bolt size:
  • maintains integrity of wall, ceiling, or floor, strengthening
    the anchoring
  • ends the need to patch an oversized hole [a 1/4" wing toggle requires a 3/4" diameter hole: 50% larger than the 1/2" diameter hole used by the 1/4” SNAPTOGGLE anchor]

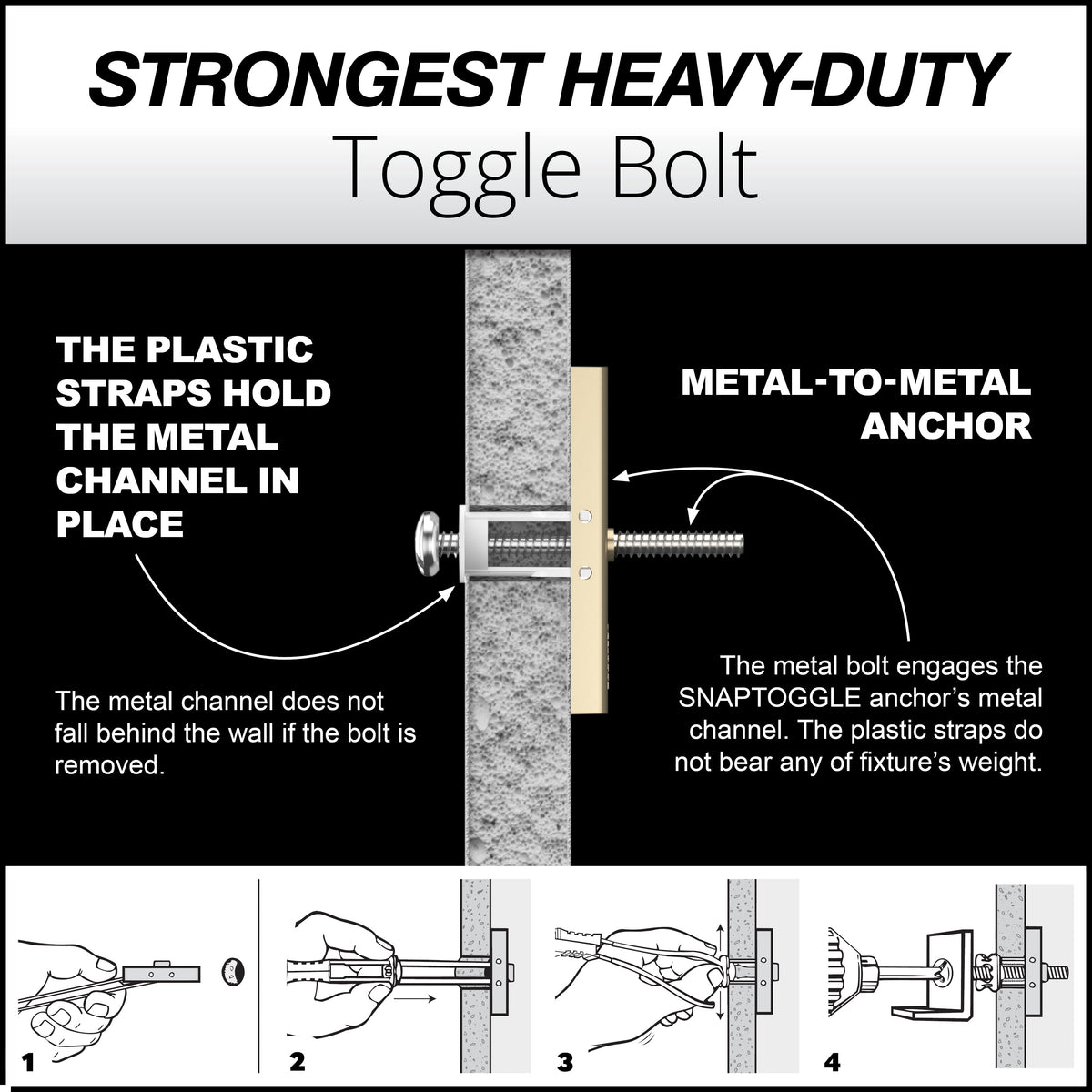

Installation

• Drill appropriate size hole. Hold metal channel flat alongside plastic straps & slide channel through the hole. Minimum clearance behind wall: only 1-7/8”
• Hold ends of straps together between thumb & forefinger and pull toward you until channel rests behind wall. Ratchet cap along straps with other hand until flange of cap is flush with wall.
• Place thumb between straps at wall. Push thumb side to side, snapping off straps level with flange of cap.
• Place item over flange. Insert bolt and tighten until snug against item, then stop. Use machine screw or bolt to match thread in metal channel.
