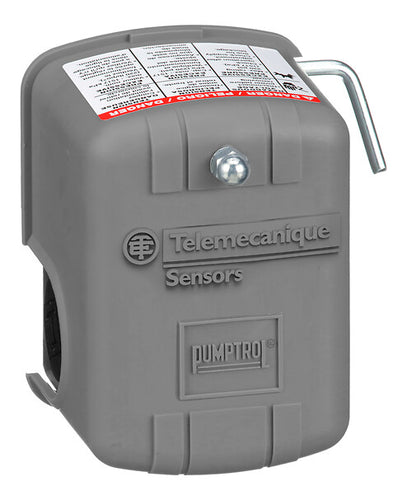

Telemecanique Sensors Pumptrol Pressure Switch 30 - 50 PSI

PRESSURE SWITCH - 30 - 50 PSI S FSG2M43050

Characteristics

Main
Range of product Telemecanique Pressure sensors XM
Pressure sensor name FSG

Pressure sensor type Electromechanical pressure sensor
Product specific application Not applicable

Operating position Any position
Electrical circuit type Power circuit

Pressure switch type of operation Regulation between 2 thresholds
Fluid connection type G 1/4 (female) conforming to ISO 228
Scale type Adjustable differential
Controlled fluid Fresh water (0-70 °C), sea water (0-70 °C)
Electrical connection Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2 mm²
Local display Without
IP degree of protection IP20 conforming to IEC 60529
Setting Internal
Pressure actuator Diaphragm

Complementary

Standard CE IEC 60730
Terminal block typ 4 terminals
Operating rate 10 CYCLE_PER_MINUTE
Terminals description ISO n°1
(1-2)NC
(3-4)NC

Environment
Protective treatment TC
