Eastman Gas Range Installation Kit

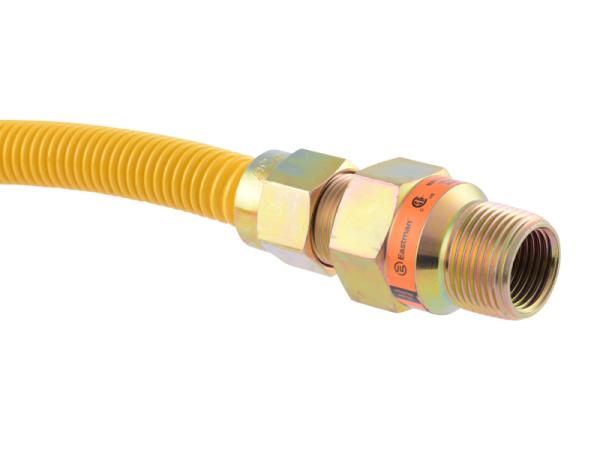

The Eastman™ 5/8-IN OD gas range connector kit is designed to connect most major brands of gas ranges to a shut-off valve. The connector is certified for use with most ranges with gas ratings up to 106,000 BTUs. The gas range connector kit includes an ArmorBoost™ EFV (thermal excess flow valve). The ArmorBoost™ EFV from Eastman™ is designed to help protect you and your family from catastrophic ruptures or disconnects in your gas line. The ArmorBoost™ valve immediately restricts gas flow to help protect you from the build-up of flammable gas. The valve will remain activated until the gas line is properly repaired. For added protection, the ArmorBoost™ EFV features a special fire-safe thermal ring that expands to stop gas flow when extreme temperatures of 350⁰ + are reached. The DuraCoat™ Epoxy Coating provides extra protection from corrosion, chemical stains from common household products, and UV rays and is approved for indoor/outdoor use.

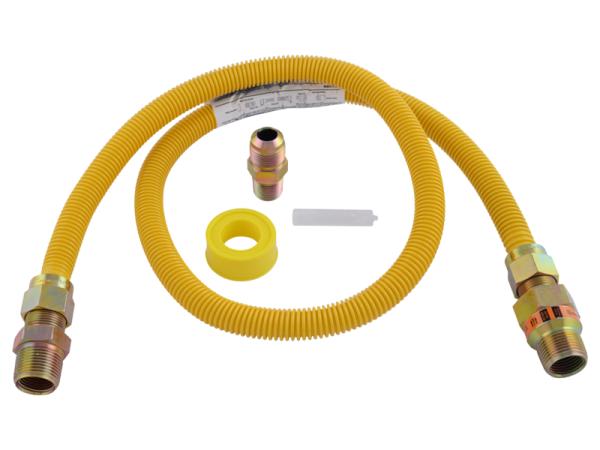

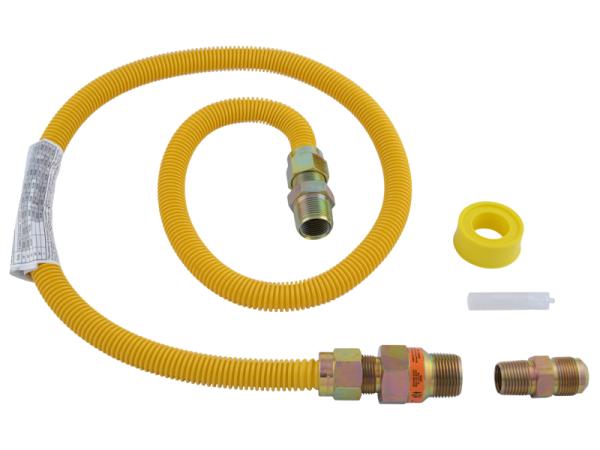

This kit includes (1) 48-IN 5/8-IN OD epoxy-coated gas range connector, (1) 3/4-IN MIP (TAPPED 1/2-IN FIP) ArmorBoost™ EFV auto shut-off valve, (1) 3/4-IN MIP (Tapped 1/2-IN FIP) fitting, (1) 1/2-IN MIP (Tapped 3/8-IN FIP) fitting, (1) leak detector solution, (1) thread sealant. The gas connector protects to be used for natural gas or LP gas ranges, boilers, and high-usage appliance. The connector protects certified for indoor and outdoor use on appliances up to 106,000 BTUs. DuraCoat epoxy coating protects against corrosion, stains, and UV

• Fits most ranges with gas ratings up to 106,000 BTUs.

• Gas connector and fittings used for Natural Gas and Liquid Propane (LP).

• Approved for indoor and outdoor use.

• Easy to install, no special tools required.

• ArmorBoost EFV (Excess Flow Valve) protects against ruptures and disconnects.

• DuraCoat epoxy coating protects against corrosion, stains, and UV.

• Temperature rating: -20 Degrees F to 150 Degrees F+.

• 100% Leak Tested - Factory tested for peace of mind.
• Certified to: ANSI Z 21.24/CSA 6.10, ANSI Z 21.69/CSA 6.16, ANSI Z 21.75/CSA 6.27, Commonwealth of Massachusetts Board of State Examiners (except 48", 60", 72"), City of New York-MEA #376-92-M.
